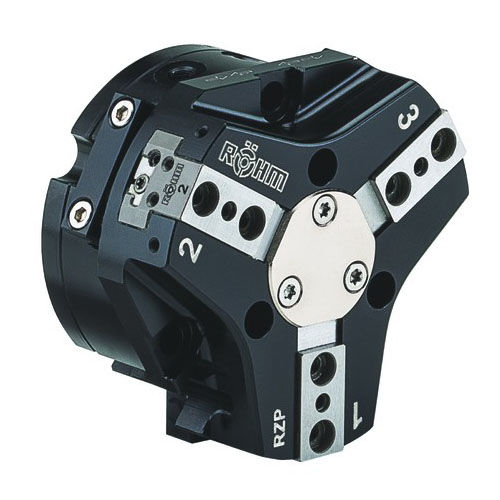

Pneumatic gripper RZP-64

angular3-jawfor industrial robots

• Available from sizes 64 to 300, each in two stroke variants. Optionally with gripping force safety device and/or dirt cover. • Fastening of the gripper fingers via centering sleeves (included in the scope of delivery). • Centrically clamping in compact design made of high-strength, hard-coated aluminum alloy • All functional parts made of hardened steel for maximum service life • Wedge hook principle with pneumatic actuation • Optional inductive and magnetic position sensors • Optionally available with FKM seals for higher temperatures up to 150°C (on request) • Integrable purge air connection to prevent contamination Universal gripping of round and cylindrical workpieces with three centrically arranged gripper fingers for handling with robots or portals. • High gripping force with low dead weight and compact design • High torque support for using long gripper fingers thanks to elongated jaw guide • Maximum flexibility thanks to versatile connection and fastening options • Long service life and high reliability thanks to specially ground base jaws in proven T-slot guide
