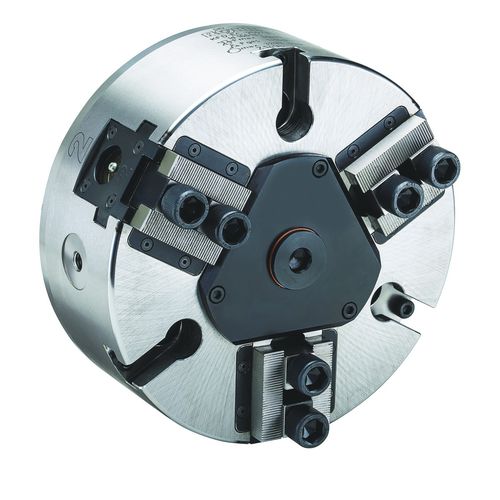

Power chuck KFD-EC3-jawlathethrough-hole
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Number of jaws
- 3-jaw
- Other characteristics
- lathe, through-hole, closed-center, machining
- Rotational speed
Min.: 2,000 rpm
(12,566.37 rad.min-1)Max.: 4,000 rpm
(25,132.74 rad.min-1)- Gripping force
90 kN, 140 kN, 190 kN, 250 kN
Description
Power chuck with cylindrical centre mount.
3-jaw version with serration 90°.
Physical characteristics
Proven wedge hook system
Application area
Especially for use under extreme operating conditions, e.g. dry or raw part machining and/or high coolant pressure.
Benefits
Easy Care: Low-maintenance and -wear
Lubrication interval, depending on operating conditions, up to approx. 600 operating hours
Optimized protection against the penetration of dirt thanks to seals built into the jaw guides
Catalogs
Clamping jaws catalogue
148 Pages
