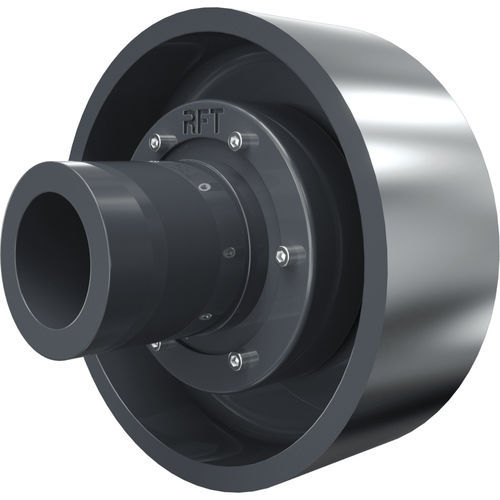

Claw coupling RKK-WBT

drumshaft

BRAKE DRUM COUPLING TYPE RKK-WBT About the product Elastic shaft coupling, Claw coupling with brake drum for drum brakes according to DIN 15435 Coupling is positively and breakdown-resistant Made from solid material (C45), no casting design 2-Components painting, RAL 7024 MADE IN GERMANY Features RKK couplings, connecting element with high flexibility Torsionally flexible Axial compensatively Radial compensatively Angular compensatively Quick and easy replacement of worn coupling elements: 1. loosen and pull back retaining cap 2. remove coupling elements and insert new ones 3. push back retaining cap and screw tight Technical benefits Brake drum is balance free Easily removable worn rubber elements / coupling elements without disassemble the coupling or motor Thicker brake drum rim / outer surface (Increased energy absorption in case of emergency) Claws of the couplings are coaxial to the shaft (No draft angles, therefore lower axial forces) Long service-life and reduced maintenance and follow-up costs
