- Electromechanical pressure switch
- Römheld GmbH Friedrichshütte

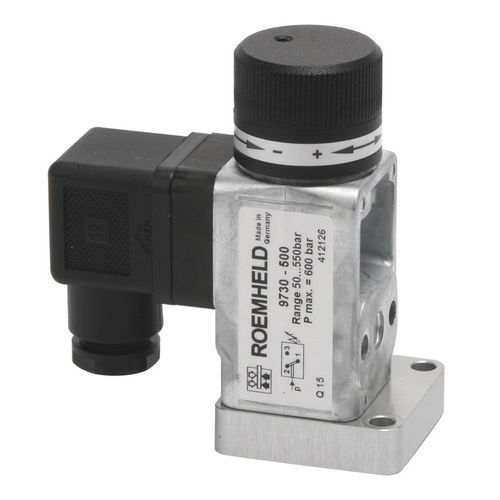

Electromechanical pressure switch F9.732relativeG 1/4for oil
Add to favorites
Compare this product
Characteristics
- Technology
- electromechanical
- Pressure type
- relative
- Process connection
- G 1/4
- Fluid
- for oil
- Protection level
- IP65
- Applications
- for hydraulic applications, for motors
- Pressure range
Min.: 5 bar
(72.52 psi)Max.: 600 bar
(8,702.26 psi)
Description
F9.732 Pressure switches
F9.732 Pressure switches
hydro-electric signal converter
pressure range 5-130 bar
50-350 bar and 50-550 bar
ports: G1/4 or O-ring
max. operating pressure: 600 bar
electrical connection: plug DIN 43650, form A
max. load: 4.0 A at 250 VAC/3.0 A at 28 VDC
hysteresis: 8 ...12 %
code class: IP 65
