- Hydraulics - Pneumatics
- Filter and Separator
- Oil filter
- Römheld GmbH Friedrichshütte

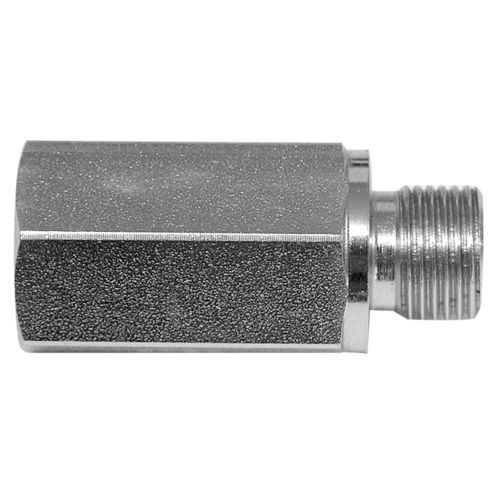

Screw-lock filter F9.500-6oilcartridgehigh-pressure
Add to favorites
Compare this product
Characteristics
- Designed for
- oil
- Filtration element
- cartridge
- Applications
- high-pressure, for hydraulic applications
- Material
- stainless steel
- Mounting
- screw-lock
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 500 bar
(7,251.887 psi)- Filtration size
100 µm
- Flow
9 l/min
(2.378 us gal/min)
Description
F9.500 High-pressure filters
F9.500 High-pressure filters
High-pressure filters made of stainless steel and steel
max. operating pressure 350 and 500 bar
Steel filter 500 bar
filter performance: 100 μm
max. flow rate: up to 9 l/min
filter material: steel
body material: steel, galvanized
connections: G 1/4
max. operating pressure: 500 bar
Catalogs
No catalogs are available for this product.
