Insert roller bar 8.18345mechanical
Add to favorites
Compare this product
Characteristics
- Options
- insert, mechanical
Description

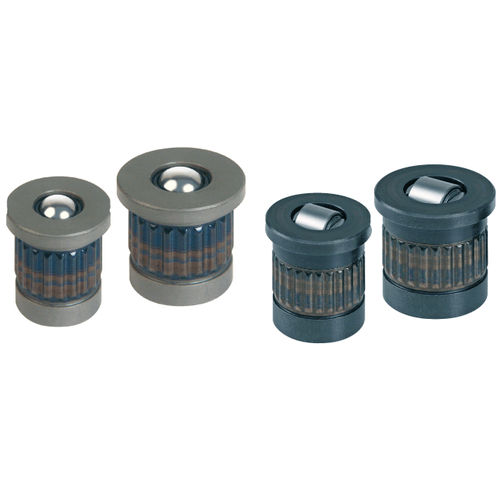

8.18345 Roller and Ball inserts, Mechanical
8.18345 Roller and Ball inserts, Mechanical
with spring pack
max. load 2.4 kN
Roller inserts
loads: 600 up to 2400 N
lifting stroke: 1.5 up to 2 mm
versions without and with flange
Ball inserts
loads: 200 to 1000 N
lifting stroke: 1.5 up to 3 mm
versions without and with flange
