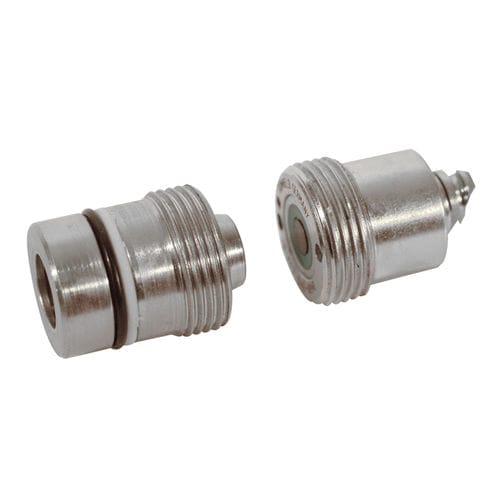

Hydraulic coupler F9.428
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
Description
F9.428 Coupling elements
F9.428 Coupling elements
build-in type and threaded-body type
max. operating pressure 300/500 bar
nominal diameter: ND 3 .. 8
max. flow rate: 8 .. 35 l/min
coupling stroke: 4.5 .. 7.4 mm
max. coupling force: 2.4 .. 8.4 kN
positioning tolerance, axial: +0.5 mm
positioning tolerance, radial: ±0.1.. 0.25 mm
