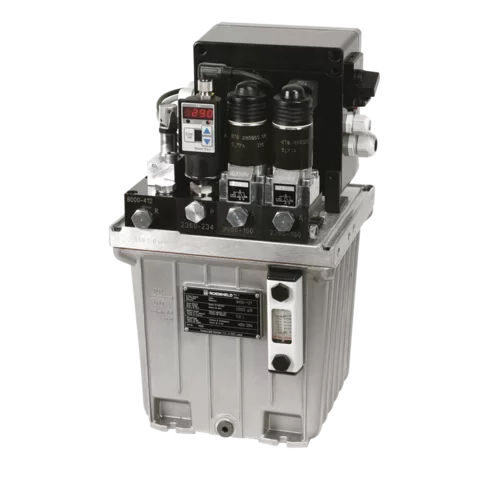

Clamping hydraulic power unit D8.0115with AC motorfor machine toolscompact
Add to favorites
Compare this product
Characteristics
- Power source
- with AC motor
- Applications
- for machine tools, for clamping
- Other characteristics
- compact, stationary
- Operating pressure
160 bar, 250 bar, 500 bar
(2,321 psi, 3,626 psi, 7,252 psi)- Nominal power
Min.: 750 W
(1 hp)Max.: 1,100 W
(1.5 hp)- Flow rate
0.82 m³/h, 2.1 m³/h, 3.5 m³/h
(28.96 ft³/h, 74.16 ft³/h, 123.6 ft³/h)- Tank capacity
5 l
(1.32 gal)
Description
D8.0115 Hydraulic power units
D8.0115 Hydraulic power units
ready for connection
energy-saving intermittent cycling
max. flow rate 0.82/2,1/3.5 l/min
max. operating pressure 500/250/160 bar
flow rate: 0.82 .. 3.51 l/min
operating pressure: 160 .. 500 bar
reservoir volume: approx. 5 l
usable oil volume: approx. 3.2 l
continuous duty: up to 120 s
motor rating: 0.75 .. 1.1 kW
motor voltage: 400 VAC 50 Hz
