Compact coupling F9.461

shaft sleeve

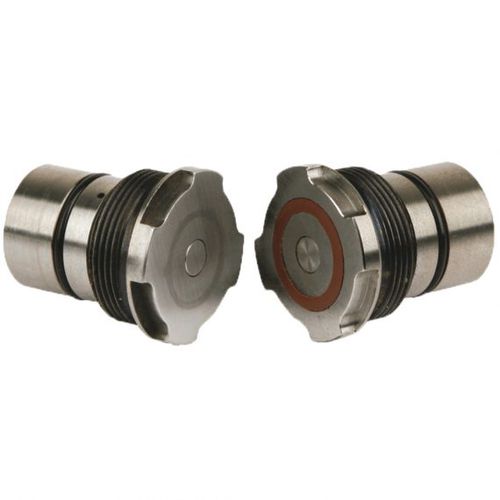

depressurized coupling, max. operating pressure 200 bar radial misalignment of 2 mm is possible no coupling stroke required no protruding contours compact dimensions On machine centers with pallet changing systems, the coupling elements transfer hydraulic oil or compressed air from the machine table to the hydraulic clamping fixture. These automatically closing couplings have a flat surface and do not have protruding elements for sealing. Therefore exact positioning is not required and a radial positioning misalignment of up to 2 mm is admitted. Cleaning of the coupling surfaces is easily possible due to the flat surfaces.
