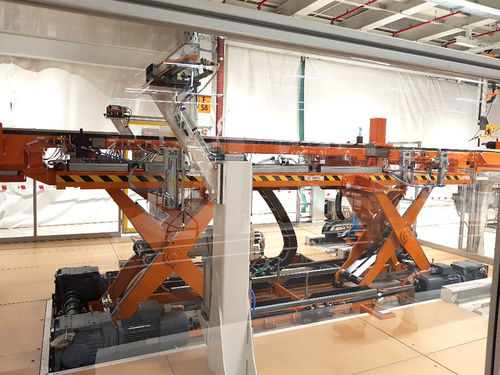

Scissor lifting table MT-M15

bellowsstationarymobile

Scissors lifting tables from the MT series can be used in a variety of ways. The spectrum ranges from stationary use in personnel-secured areas to integration into mobile skillets. In order to guarantee the first prerequisite, all scissors lifting tables are available in an extension version that meets performance level d and thus guarantees the safety of the person working directly on the lifting table. All scissors lifting table models meet the requirements of DIN EN ISO 1570-1:2012-01, regardless of the extension variant. To reduce the drive torque, the patented lifting kinematics are based on a four-bar mechanism that is powered by a flat belt. The number of belts depends on the load capacity and the construction. The polyamide belts used are reinforced with steel and are designed so that even if a belt rips, emergency operation is still possible. Each belt can be tensioned separately and is monitored by a slack belt switch. Furthermore, our products have self-supporting lower frames, which allows the entire plant – depending on its size – be supported on 4-6 points. Naturally the scissors lifting tables can also be equipped with additional equipment beyond the respective basics. These include bellows or protective ground contact strips, for example.
