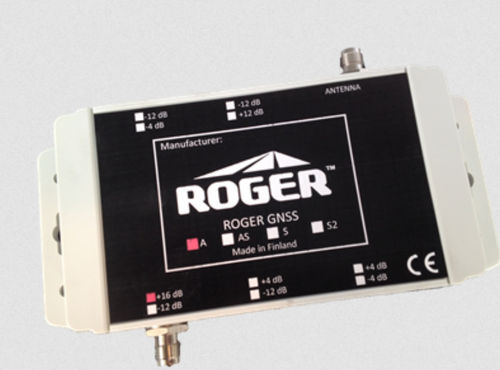

Signal amplifier GNSS-A-IP67GPS signal
Add to favorites
Compare this product
Characteristics
- Type
- signal
- Other characteristics
- GPS signal
- Frequency
Max.: 1,700 MHz
Min.: 1,200 MHz
Description
Roger™ GNSS Line Amplifier is used to allow longer cable runs for GNSS Repeaters.
It has a gain of +16dB at the GPS L1/L2/GLONASS/GALILEO/BEIDOU frequency bands and it includes a filter to remove unwanted signals that may have entered the cable at some point.
Amplifier is powered through the output signal cable by the Roger™ GNSS Repeater and also passes on DC power for the GPS receiving antenna or an another Roger™ GNSS equipment.
Technical information
Size:
220*148*39mm
Weight:
135 g
Operating Temperature:
-40 - +75°C
Connectors:
TNC female input TNC female output
Noise figure:
<5 dB
Impedance:
50Ω
Gain:
+16dB
