GNSS repeater GNSS-TAC-L1L2G1GA-H

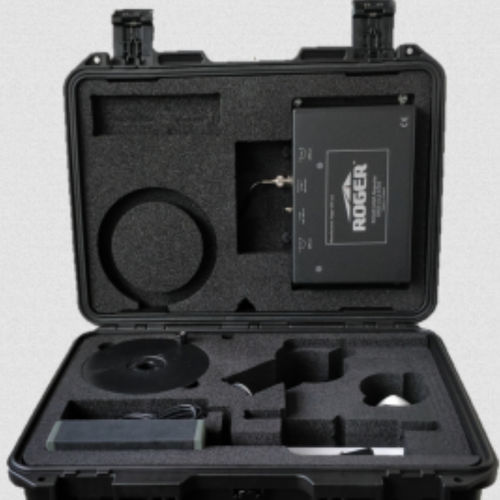

Use cases include Field Service, Public Safety, Mission Critical related tasks - whether it is location or timing related applications. Everything you need for indoor GNSS in one compact backpack. Open the lid and setup the antenna and you are ready to go. No need for fixed power connection when using battery. Includes: 2. 230V Power supply for charging the battery pack and powering up the repeater 3. Battery pack (8 Ah) if no power is available 4. Antenna mount for the antenna 6. Reel holder for winding/unwinding of cable 7. Fuse for over current protection 8. 12V Power supply for AC/DC input and car battery/cigarette lighter adapter Technical information Weight: 6,9 kg Size: 46.23 x 34.04 x 17.02cm (18.20” x 13.40” x 6.70”) Overall Gain: >40 dB Noise Figure: <2 dB Adjustable attenuation: 0-40 dB Impedance: 50Ω Input connector: TNC-female Operating temperature: -40 - +75 °C Power supply: 110-230VAC - 12VDC/1.0A Battery pack: Tracer BP2544 Lithium Polymer Battery Pack Battery Model Spec: LiPo -6067100 3S2P 11.1V 8Ah Antenna power output: +5VDC, 100mA TX antenna gain max: +4dBd, RHCP polarization
