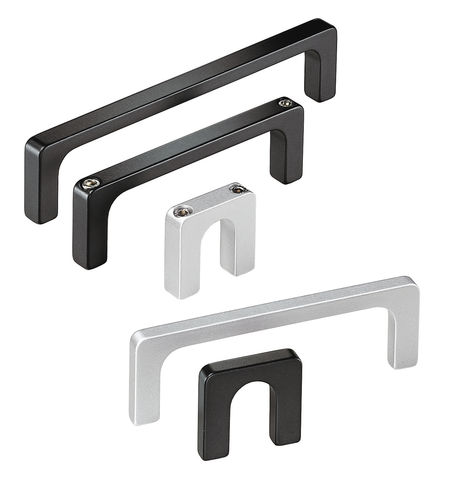

Pull handle R19"-drawerequipmentaluminum
Add to favorites
Compare this product
Characteristics
- Type
- pull
- Applications
- 19"-drawer, equipment
- Material
- aluminum
- Shape
- U-shaped
- Other characteristics
- rugged
- Size
Min.: 32 mm
(1.26 in)Max.: 265.5 mm
(10.45 in)
Description
Particularly versatile and attractive series for 19“ drawers and instruments.
Material and surface:
Profiled aluminium AIMgSi 0.5; vibration ground and anodized to a matt finish in natural or black colour.
Types R1 and R2
differ in width and size of thread and can therefore be adapted to case specifications.
Type R3
For screws mounting from the front. Scope of supply incl. stainless steel cheese head screws with hexagon socket M5x45 DIN 912 and galvanized, selflocking ratchet nuts.
It means for 19“ front panel handles:
HE = unit of height
1 HE = 44.45 mm = 16/8“
Height of front panels ≈ HE x 44.45 mm – 0.8 mm
Stress resistance:
min. 500 N.
