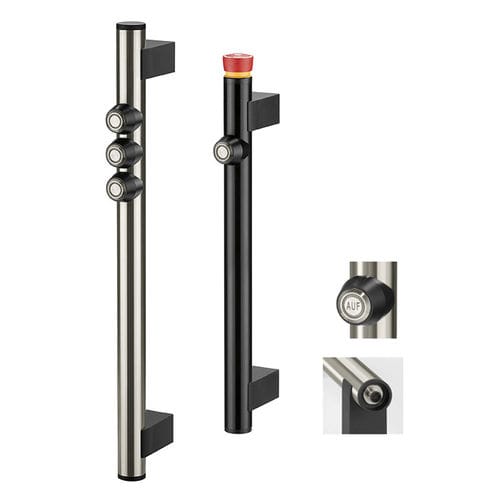

Functional handle FG14

doorwith push buttonwith electrical switching function

Handle Series FG14 The modular design of this handle series allows an individual assembly of the handle with function elements. In order to define the functions of the separate operating devices, each button can be labeled on demand. Material and surface: Tube ø 35 x 1.5 mm AlMgSi 0,5; fine ground and black anodized or alternatively made of stainless steel, material no. 1.4301; fine ground. Tube holders of glassball reinforced polyamid PA6, black, half-matt with fine structure. Function elements: Push buttons with red resp. green illuminated ring. Other LED colours on request. Connection: 12-pole, coupling with 10 m ready made cable available as accessory. Protection class: IP 65 (with screwed coupling). Note: Other handle lengths and designs on request. Print datasheet ‹ Handle Series VG-08, VG-09 Handle Series MF ›
