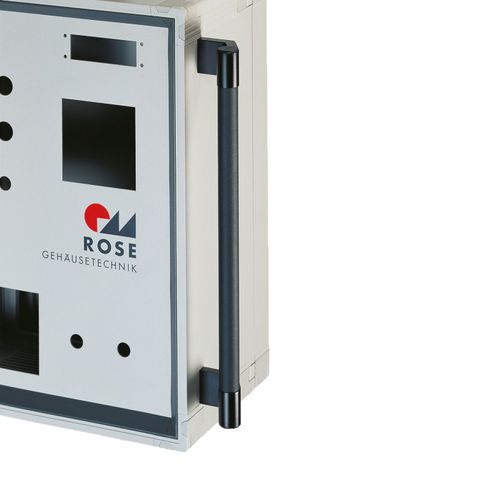

Technical design similar to the insertion handle system W1 but with larger dimensions for the housing.
Material and surface:
Handle shank of extruded aluminium AlMgSi 0.5 with satin finish, black anodized. Shank insert of polyamide PA6, glass bead rein- forcement, black. Visible surfaces with fine structure. Connecting tubes of ø30x1.5 mm aluminium AlMgSi 0.5; fine ground and anodized in 2 colours resp. with a black grooved plastic coating resp. black or titanium coloured powder coated with fine structure.
Note:
All handle lengths available on request.
Stress resistance:
min. 1000 N.
