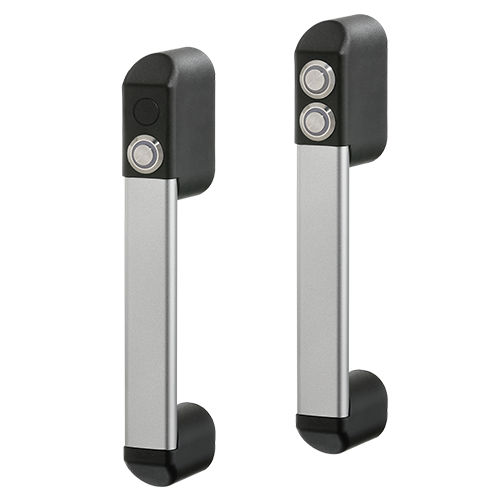

Functional handle FG18-01, FG18-02aluminumwith push buttonwith electrical switching function
Add to favorites
Compare this product
Characteristics
- Type
- functional
- Material
- aluminum
- Other characteristics
- with push button, with electrical switching function
- Size
Max.: 1,000 mm
(39.37 in)Min.: 251 mm
(9.88 in)
Description
Material and surface:
Handle shanks made of polyamide PA6, glass ball reinforced in black with fine structure. Connecting ledge made of profiled aluminum AlMgSi 0.5; glass ball blasted and natural anodized.
Function elements:
FG18-01
Push button (change-over contact) with green ring light.
FG18-02
Push button 1 (change-over contact) with green ring light. Push button 2 (change-over contact) with red ring light.
FG18-00
Counter-handle without operating elements.
Connection:
8-pin or 12-pin connector in the mounting surface of the shank.
Protection class:
IP 65 with coupling screwed on.
Note:
Other handle lengths and other operating elements on request.
