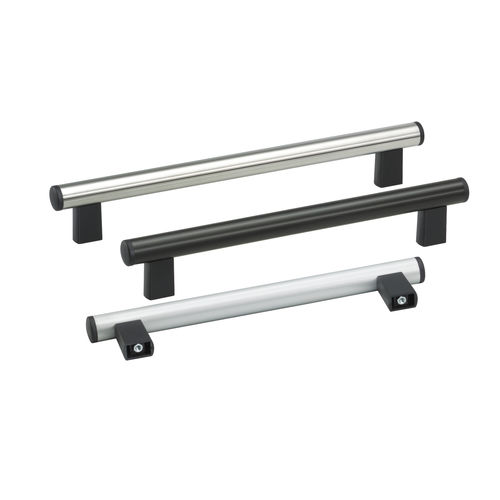

Tubular handle U1 seriesdooraluminumstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- tubular
- Applications
- door
- Material
- aluminum, stainless steel
- Size
Min.: 288 mm
(11.34 in)Max.: 588 mm
(23.15 in)
Description
product details
Material and surface:
Tubes of ø30x1.5 mm aluminium AlMgSi 0.5; fine ground, natural coloured anodized or black powdercoated, with fine structure. Alternativ tube made of stainless steel, material no. 1.4031; fine ground. Tube holders and tube caps made of polyamide PA6, glass bead reinforced, black, half-matt with fine structure. Tube threaded insert made of aluminium, screw-down insert made of steel, galvanized.
Technical features:
Screwed connection from the grip holder to the tube with nondetachable blind rivet nuts to prevent it being pulled off.
Note:
Handle lengths and screw down spacers available as required on request.
Stress resistance:
min. 800 N.
