Functional handle FG7
dooraluminumwith emergency stop

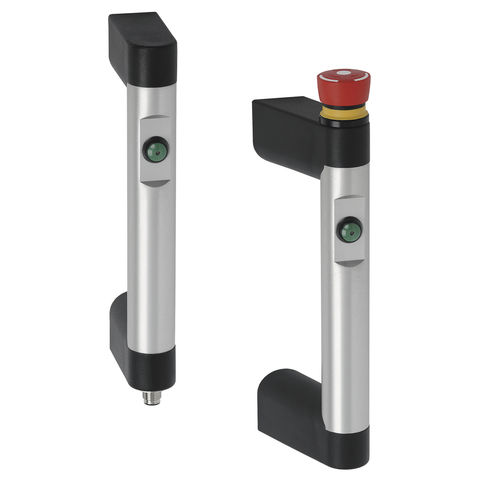

Functional handle - FG7 - Rohde AG - door / aluminum / with emergency stop
Functional handle - FG7 - Rohde AG - door / aluminum / with emergency stop
Functional handle - FG7 - Rohde AG - door / aluminum / with emergency stop - image - 2
Functional handle - FG7 - Rohde AG - door / aluminum / with emergency stop - image - 3
Functional handle - FG7 - Rohde AG - door / aluminum / with emergency stop - image - 4
Functional handle - FG7 - Rohde AG - door / aluminum / with emergency stop - image - 5
Functional handle - FG7 - Rohde AG - door / aluminum / with emergency stop - image - 6
Add to favorites
Compare this product


Characteristics

Type
functional
Applications
door
Material
aluminum
Other characteristics
with emergency stop, with push button
Size

323 mm
(12.72 in)

Description

product details Other versions Material and surface: Handle ledge Ø30x5 mm aluminium round tube AlMgSi 0.5; fine ground and natural coloured anodized. Handle shanks of polyamide PA6, black with fine structure. Function element: 1 Push buttons with LED. Type FG7-04 with additional emergency stop (2 NC contacts). Connection A: Coupling positioned at the tubular axle of the handle ledge in the handle shank. Connection B: Coupling positioned at the mounting surface of the handle shank. Connection C: The 5m connection cable is guided out of the mounting surface of the handle shank. The connection A and C are available with straight and chamfer handle shanks, as left and right hand versions for use with double doors. Protection class: IP 65 (for the versions A and B with screwed coupling). Note: Coupling with 10m ready made cable available as accessories. Other handle lengths, anodized versions and illuminated emergency stop button on request.
