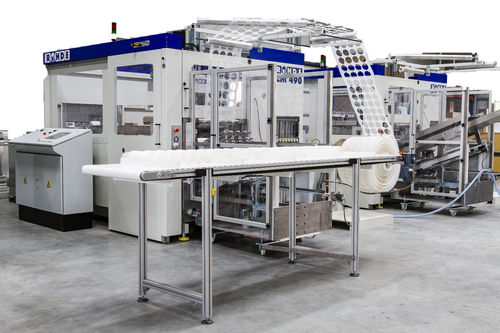

Roll-fed thermoforming machine CM series

for cup productionautomaticcompressed air

– stable forming station for up to 1.85 mm sheet – electronic adjustability of the punching cam – precise moulding table alignment, double toggle kinematics – easy use of steel rule tools – Multi-row tools (2 or 3-row, up to 15 cavities) – technology with punch plate and die plate – 30% lower tool cost – Tool cooling system for speed and quality – Radiant heating system – Servo Plug System, main drive, sheet transport = Industry 4.0 – Designed and made for longevity and durability – Unique 12 months warranty in three shift system – Super-fast, and user friendly tool change over – PLC and color touch screen with recipe storage – Very low maintenance efforts The thermoforming machines from the CM series use a tilting technology controlled by an electronic curve, which allows to have very high cutting forces, a variable punching cam, these two factors are fundamental to reach high production rates and therefore an economical production. We also offer Steel rule tools as a more economically option to boost ours clients production. From the thinnest sheet up to 2.5 mm thick it can be processed in this machine, with a forming area of 490 mm x 250 mm and a depth of 155 mm. CM490 – Electronic This model implements an electronic curve which allows to maximize the production cycles, all kind of sheet cab be processed on area and depth in this machine.
