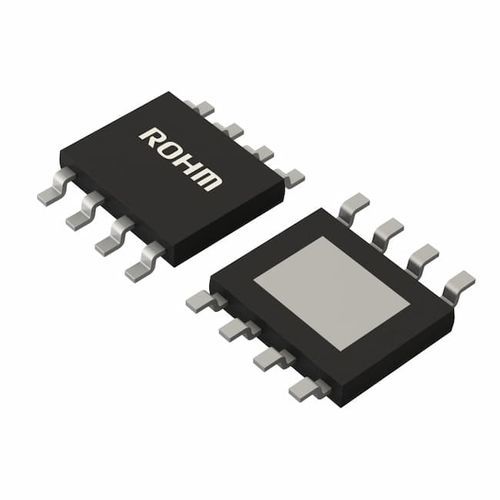

Power IC converter BD7F200UEFJ-LB

isolated

This product guarantees long time supply availability in the industrial instrumentation market. BD7F200 is an optocoupler-less Isolated Flyback Converter. An optocoupler or the tertiary winding feedback circuit which was needed to obtain a stable output voltage isolated by a transformer in the conventional application becomes unnecessary, thus, the number of parts is reduced drastically, producing a small-sized and high-reliability application isolated type power supply. Furthermore, a highly by the use of the Original Adapted-Type ON-Time Control Technology, it makes the external phase compensation parts become unnecessary, therefore a highly efficient isolated type power supply application can easily be produced. Features: Guaranteed long time supply availability for Industrial Applications.No need for an optocoupler or a transformer tertiary winding. The output voltage can be set by two external resistors and the transformer turns ratio.Uses Original Adapted Type ON-Time Control Technology. High-speed load response is realized and external phase compensation parts are unnecessary.Fixed switching frequency and low output rippleHighly efficient light load mode available (PFM operation)Shutdown / Enable ControlBuilt-in N-Channel MOSFETSoft start functionOutput load compensation functionProtection functions: VIN Under Voltage Lock-Out (VIN UVLO) Over Current Protection (OCP) Thermal Shutdown Protection (TSD)
