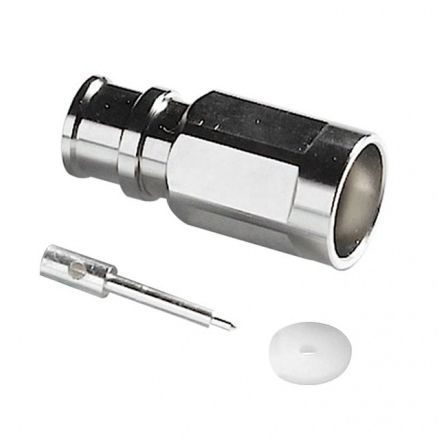

Data connector NEX10

RFstraightfemale

• Can terminate to coaxial; • Can be male or female gender in standard polarity, with 50ohm impedance; • Body can be straight or right angle; • Mount Method can be bulkhead or mount-less; • Attachment methods include clamp/solder, crimp/solder or solder/solder. The NEX10 connector system meets the existing and future infrastructure efficiency demands of small cell applications and 5G mobile networks. For frequencies up to 20GHz, the new robust and highly compact NEX10 interface standard provides safe, easy and damage-free connection while minimizing interference from PIM (Passive Intermodulation); and frequency max up to 6GHz; this NEX10 male connector has an interface type of 1/4'' Suplerflexible Cable and a 50ohm impedance, attachment method uses shield/contact solder/solder, its straight body is brass with nickel plating.
