Data connector

micro-coaxialjackPCB

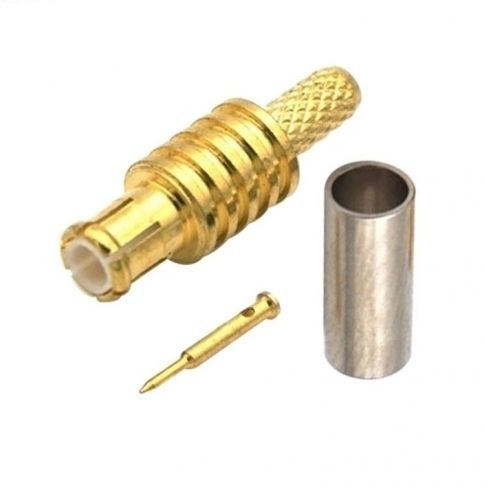

• Can terminate to coax, PCB (printed circuit board) or terminal; • Can be jack or plug gender in standard polarity or reverse polarity threads, with 50ohm impedance; • Body can be straight or right angle; • Mount Method can be bulkhead, 2 hole panel, 4 hole panel or mount-less; • Attachment methods include crimp/solder or solder; • Body is brass or stainless steel. The MCX (Micro Coaxial) connector is available with 50 or 75 ohm options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy snap-on/ snap-off coupling;A robust range of connectors are available, including printed circuit board and cable connectors, as well as 12G optimized products; this MCX male coaxial connector has an interface type of RG316 RG174 RG188 LMR100 cable and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with gold plating.
