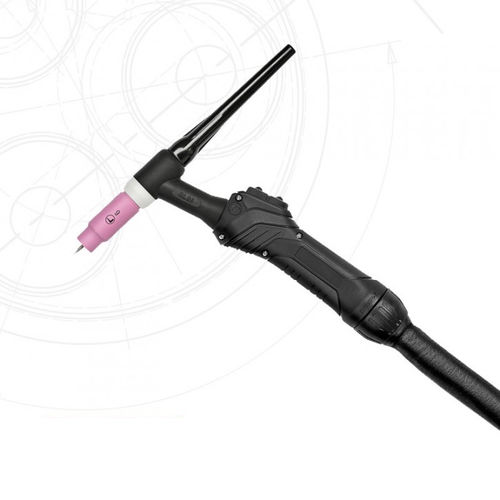

TIG welding torch Series R-Lineair-cooled4m
Add to favorites
Compare this product
Characteristics
- Technique
- TIG
- Cooling mechanism
- air-cooled
- Cable length
- 4m
- Intensity
Max.: 400 A
Min.: 140 A
- Duty cycle
35 %, 100 %
- Wire/electrode diameter
Max.: 4 mm
(0.16 in)Min.: 0.5 mm
(0.02 in)- Gas flow
Max.: 24 l/min
(6.34 us gal/min)Min.: 6 l/min
(1.59 us gal/min)
Description
TIG torches of the R-Line series have been designed to offer the welder an application-friendly and much more compact welding torch with excellent properties. The R-Line series TIG torches are available in the air cooled version from 200 ampere and in the water cooled version from 350 ampere to 400 ampere. All hose and cable packages are made with the smallest version of our RTC (Rohrman TIG Comfort) handle. Connections for most of welding power sources are available.
VIDEO
Catalogs
Data Sheet WIG RL26 GB
2 Pages
