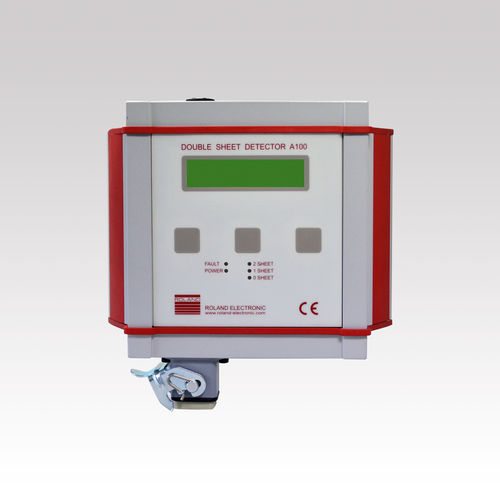

Double metal sheet detector A100

single-sidedcompact

The TNxxS sensors are equipped with plug connection. These new connection cables comes with both straight and angled connectors. The TN sensors are single-sided contacting sensors with a permanent magnet. This results in a very low energy consumption and a very fast response time. They are suitable for steel sheets and especially for tinplate. The 5 sensors TN08S, TN15S, TN30S, TN40S cover a measurement range from 0.08 to 3.6 mm. It is cost-effective double sheet detection with single probe sensors. These sensors has its special specifications, it has a single probe sensors, permanent-magnetic. The measurement of ferrous material is .04 - 3.6 mm in a single sheet thickness. It has an accessible setup by key operation or via control input. The LCD display for visualization of nominal / current values, operational / error messages, key allocation. It has a compact enclosure for DIN-rail mounting, protection class IP00.
