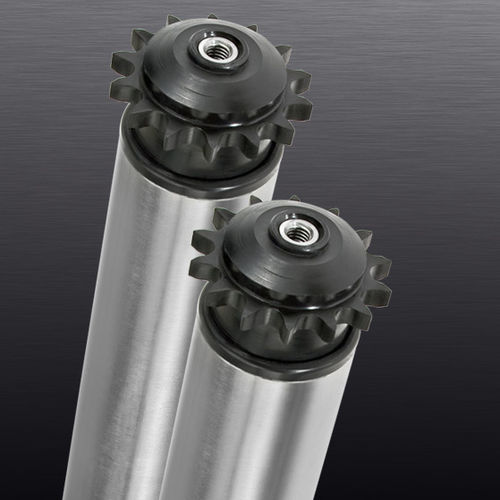

Driven conveyor roller BETA3 1R-1RF
chain drivethermoplasticsteel

driven conveyor roller
driven conveyor roller
driven conveyor roller
Add to favorites
Compare this product


Characteristics

Drive mechanism
chain drive, driven
Material
thermoplastic, steel
Other characteristics
pinion
Diameter

Max.: 80 mm
(3 in)

Min.: 40 mm
(2 in)

Length

200 mm
(7.9 in)

Description

BETA3 CI rollers with steel tube are suitable for straight line power driven roller conveyors. Bushes and pinion sprockets are thermoplastic to guarantee optimal resistance to wear and tear and low noise level. Steel tube guarantees greater load. Pre-lubricated and sealed for life type 6202 bearings are used. Motor (1R) and single frictioned pinion sprocket (1RF) drive versions available.
