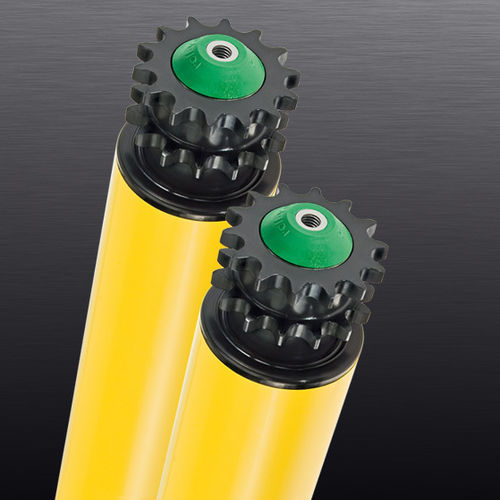

Chain drive conveyor roller BETA3 2R-2RF
drivenPVCthermoplastic

chain drive conveyor roller
chain drive conveyor roller
Add to favorites
Compare this product


Characteristics

Drive mechanism
chain drive, driven
Material
PVC, thermoplastic, stainless steel, galvanised steel
Other characteristics
pinion
Diameter

50 mm, 63 mm
(2 in, 2 in)

Length

200 mm
(7.9 in)

Description

BETA3 CI roller with PVC tube are suitable for straight line power driven roller conveyors. Bushes and pinion sprockets are thermoplastic to guarantee optimal resistance and low noise levels. Pre-lubricated and sealed for life type 6202 bearings are used. Motor (2R) and double frictioned pinion sprocket (2RF) drive versions available. AVAILABLE OPTIONS Other shaft confi gurations Stainless steel shafts Galvanized Steel Shafts Different tube colors Steel pinion sprokets Stainless steel pinion sprokets Stainless Steel bearings Pinion sprokets with different pitch and n° of teeth
