Chain drive conveyor roller BETA3 2R-2RF
PVCthermoplasticsteel

chain drive conveyor roller
chain drive conveyor roller
Add to favorites
Compare this product


Characteristics

Drive mechanism
chain drive
Material
PVC, thermoplastic, steel, stainless steel, aluminum, galvanised steel
Other characteristics
pinion
Diameter

40 mm, 50 mm, 60 mm, 70 mm, 80 mm
(2 in, 2 in, 2 in, 3 in, 3 in)

Length

200 mm
(7.9 in)

Description

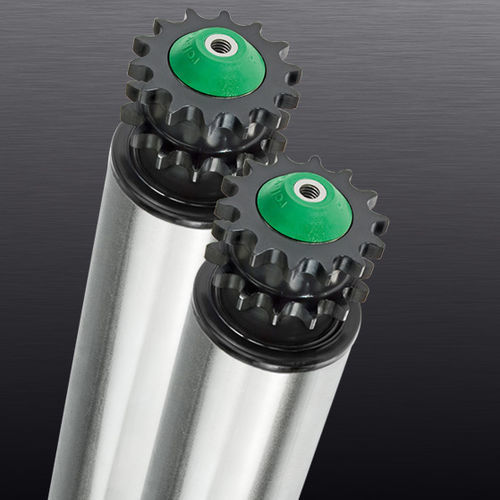

BETA3 CI rollers with steel tube are suitable for straight line power driven roller conveyors. Bushes and pinion sprockets are thermoplastic to guarantee optimal resistance to wear and tear and low noise level. Steel tube guarantees greater load. Pre-lubricated and sealed for life type 6202 bearings are used. Motor (2R) and double frictioned pinion sprocket (2RF) drive versions available. AVAILABLE OPTIONS Other shaft confi gurations Stainless steel shafts Galvanized steel Shafts Stainless Steel Tube Galvanized Steel Tube Rilsan coating steel Tube Aluminum Tube PVC sheath coating Rubber coating Polyurethane coating Steel pinion sproket Stainless steel pinion sproket Stainless steel bearings Adjustable frictioned pinion sprocket
