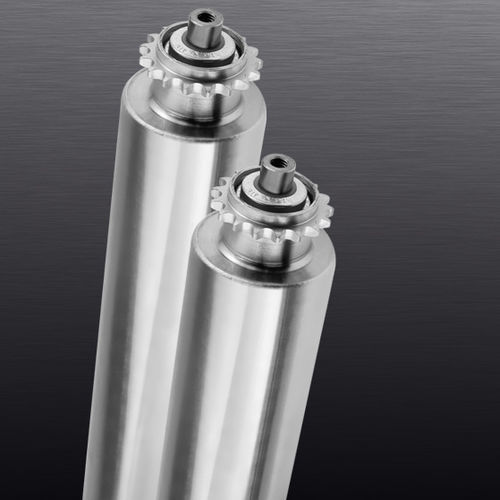

Chain drive conveyor roller OMEGA 1R-1RD
stainless steelPVCabrasion-resistant

chain drive conveyor roller
chain drive conveyor roller
Add to favorites
Compare this product


Characteristics

Drive mechanism
chain drive
Material
PVC, stainless steel
Other characteristics
abrasion-resistant
Diameter

Max.: 159 mm
(6 in)

Min.: 76 mm
(3 in)

Length

200 mm
(7.9 in)

Description

OMEGA CI rollers are suitable for conveying medium and heavy loads, even in harsh environmental conditions. One piece casing, with welded tube and housed bearing. Integral bearing protection is provided by triple labyrinth, an anti-abrasive rubber lip ring, and additional screen guard. Type 6204, 6205, 6206 bearings are pre-lubricated and sealed for life. AVAILABLE OPTIONS Other shaft confi gurations Other gear positions Stainless steel tube Stainless Steel shafts Cold galvanization Carbonitriding Rilsan coating Vulcanized Rubber coating Polyurethane coating PVC Sheath coating High temperature version (up to 350°) Free wheel configuration
