- Materials - Tools - Components
- Standard Mechanical Component
- Monobloc wheel
- Rollentechnik vom Stein GmbH

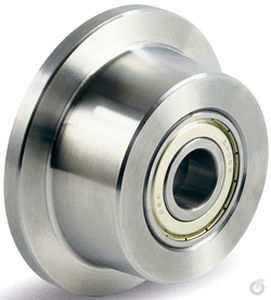

Monobloc wheel SRS 50/40/2Ksteelball bearingwheel
Add to favorites
Compare this product
Characteristics
- Type
- monobloc
- Hub material
- steel
- Hub type
- ball bearing
- Applications
- wheel, bearing
- Other characteristics
- flanged
- Load capacity
500 kg
(1,102 lb)- Diameter
50 mm
(1.97 in)- Tread width
30 mm
(1.18 in)
Description
Wheel: Steel flanged wheel with ball bearing, tread turned and 3° uphill to the flange
Specifications
Wheel-diameter x width (t):50xx30
Structure:wheel
Wheel bearings:
Flange wheel:Yes
tread (T):30
Wheel flange diameter (D1):62
Hub length (T1):40
Axle bore (d):15
Temperature of °C:-40
Temperature up to °C:90
EAN-Code:4250777764131
Delivery time in days:35
