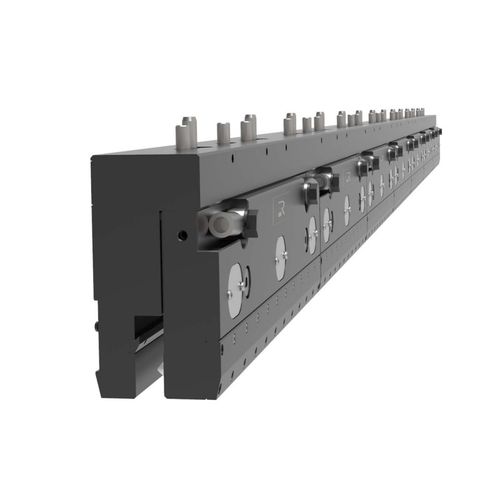

Manual clamping system ROL3 HYD

hydraulicpneumaticsafety

Hydraulic upper fast clamping system in C45 and 42CrMo4 for R3-R7-R8-R10-RX tools, length from 500 mm. ROL3 clamping systems represent the widest range for any type of press brake. They are complete systems with clamps and beam and they can be pneumatic or hydraulic. Dimensions and length are taylor made according to the press brake upper beam. ROL3 is suitable for heavy duty jobs and for high tonnage, like 5000kN/m up to 10000 kN/m. The material used for main frame and all components are FEM calculated to guarantee safety. This solution is quick, handy and convenient. UPPER SYSTEM ROL3 clamping system can be produced for LVD, Bystronic Beyeler RFA-RF-R-S, Colly, Colgar, Ajial-Axial, EHT and Ursviken press brakes. TOOL CHANGE Punches type R3 RFA, RF and R can be inserted vertically, whereas punches type R3 S, R4 and R5 can be slided in horizontally. ALIGNMENT Most R3 clamping systems can lift and seat punches automatically. SUPPLY The system is available in manual, pneumatic and hydraulic versions.
