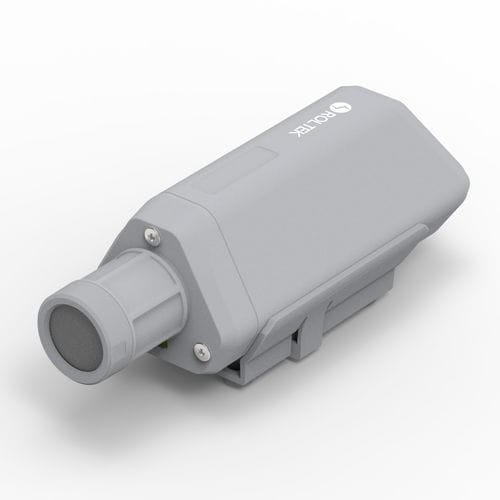

LoRaWAN CO2, Temperature, and Humidity Sensor
SensNode-LR-CO2-TH Sensor measures CO2 emission, temperature and humidity in the atmosphere at the range of 400 to 10000 ppm, -40℃ to 85℃ and 0 to 100 %RH (non-condensing) respectively, making it widely applicable in industrial environmental sensing scenarios to support the UN Sustainable Development Goals. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. Benefits from LoRa and IP66 design, this sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption.
LoRaWAN® Technology
LoRaWAN 1.0.3 Class A, Class C
Ultra Low Power Consumption
Up to 10 years of battery life
Compatible with Worldwide LoRaWAN® Networks
Compatible with different types of LoRaWAN® gateways to enable fast connection with LoRaWAN® networks (support the universal frequency plan from 863MHz ~928MHz).
Simple Configuration
SensNode-LR series provides a no-code experience that enables users to finish configuration with 4 steps
Designed to Use in Harsh Environments
-40℃ ~ 85℃ operating temperature and IP66-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
CO2
Range: 400 to 10000 ppm
Accuracy: 400 to 5000 ppm: ±(30+3%MV)
Resolution:1 ppm
Microcontroller: Wio-E5
Support Protocol: LoRaWAN v1.0.3 Class A
LoRaWAN Channel Plan: IN865/EU868/US915/AU915/ AS923/KR920/RU864
Max Transmitted Power Sensitivity: 19
