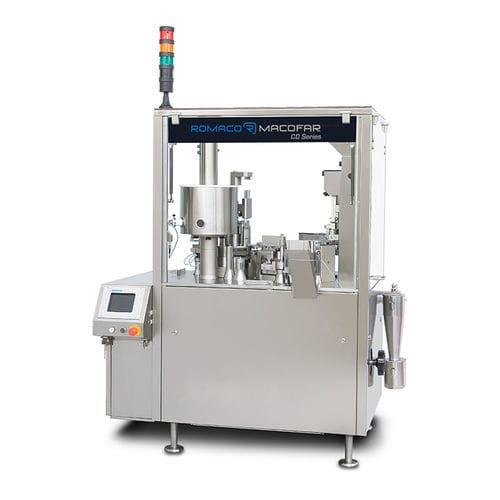

Automatic filling machine CD 40

capsulepowderfor pellets

Easy to use and to clean. CD capsule fillers can successfully handle all kinds of powders and pellets in a very compact footprint. Reliable technology for continuous production Powder dosing unit performing vertical movements without any kind of rotation Dedicated dosing system for pellets, preserving product quality and integrity Vacuum-assisted dosers Double opening station ensuring that the highest number of capsules are opened, thus reducing empty capsules rejections Process reliability • Station # 1: Infeed of the oriented capsules and opening by means of suction cups • Station # 2: Second opening of the capsules by means of suction cups. While the force of the vacuum is adjustable in the first station, the vacuum in the 2nd station has a fix value as this station works only as additionalsafety. • Station # 3: Unopened capsules are rejected into a separated container • Station # 4: Station suitable to install a pellet dosing group • Station # 5: Station suitable to install a second pellet dosing group. The drive for both pellet dosing groups cornes from 1 single cam with 1 single lever and shaft. The machine is already prepared for the installation of 1 or 2 pellet dosing groups, even at a later date. • Station # 6: Powder dosing group • Station # 7: Both capsule halves are broughttogether again • Station # 8: Mechanical closure of the capsules by means of dosing pins • Station # 9: Mechanical discharge of the ready capsules • Station # 10: Cleaning of the capsule holders by compressed air and vacuum so that only clean capsule holders are coming to station # 1
