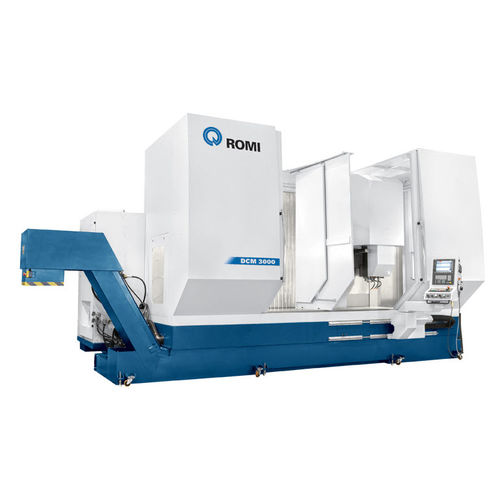

3-axis CNC machining center DCM 3000verticaltraveling-column
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- traveling-column
- X travel
3,000 mm
(118.11 in)- Y travel
840 mm
(33.07 in)- Z travel
600 mm
(23.62 in)- Rotational speed
10,000 rpm
(62,832 rad.min-1)- Power
22 kW
(29.91 hp)
Description
The moving column vetical machining center ROMI DCM 3000 equipped with CNC SIMENS is intended for machining long parts in high accuracy, with no change of the geometric accuracy of the machine, due to the concept of fixed table.
It allows working in two distinct areas of the table (swinging mode), where ma metal partition shall be installed on the center of the stroke of axis X, creating two distinct machining areas, which allows to perform load and unload of parts in one are, while the other one is machined in the another area, with significant productivity improvements.
