CNC lathe C series
horizontal2-axiscolumn type

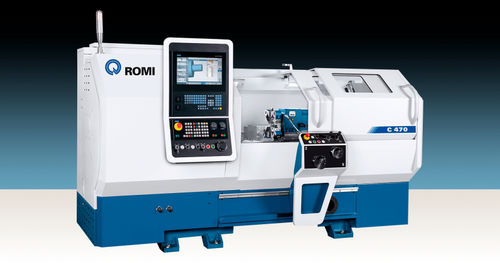

CNC lathe - C series - Romi - horizontal / 2-axis / column type

CNC lathe - C series - Romi - horizontal / 2-axis / column type - image - 2

CNC lathe - C series - Romi - horizontal / 2-axis / column type - image - 3

CNC lathe - C series - Romi - horizontal / 2-axis / column type - image - 4

Add to favorites

Compare this product

Characteristics

Control type: CNC
Spindle orientation: horizontal
Number of axes: 2-axis
Structure: column type
Spindle mount: A2-6, A2-5
Performance: high-precision, powerful, high-performance, high-speed, high-efficiency, high-rigidity
Diameter: 200 mm, 255 mm, 345 mm
(7.87 in, 10.04 in, 13.58 in)
Rapids on Z: 8 m/min, 10 m/min
Nominal power: 9 kW, 11 kW, 18.2 kW
(12.2 hp, 15 hp, 24.7 hp)

Description

The CNC Lathes from the ROMI C Series – New Generation offer great versatility for machining different types of parts, with excellent levels of power, speed of movement, and machining precision. With a robust structure, high rigidity, and stability, they provide excellent performance under various machining conditions. Ribbed cast iron bed supported by columns, forming a unit that guarantees rigidity and dimensional stability to the machine, supporting its main assemblies. Cross slide supported by steel box ways guides, induction-hardened and ground, with application of “TURCITE,” allowing for high accelerations and speeds, forming a highly rigid assembly with excellent geometric precision.
