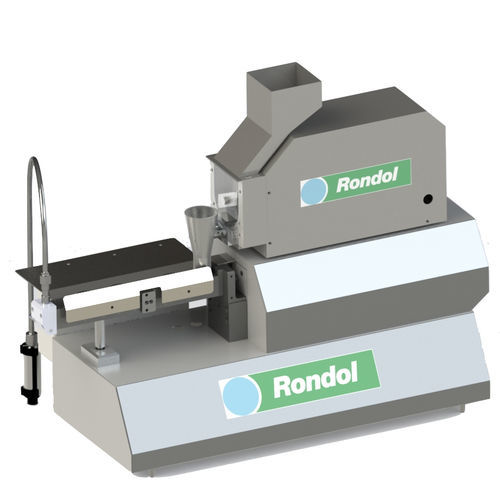

Twin-screw extruder

twin-screw extruder
twin-screw extruder
Add to favorites
Compare this product


Characteristics

Number of screws
twin-screw
Output

Max.: 7 kg/h
(15.4324 lb/h)

Min.: 0.025 kg/h
(0.0551 lb/h)

Screw diameter

11 mm, 21 mm
(0.4 in, 0.8 in)

Maximum speed

300 rpm
(1,885 rad.min-1)

Torque

29 Nm, 32 Nm
(21 ft.lb, 24 ft.lb)

Temperature

Max.: 450 °C
(842 °F)

Min.: 0 °C
(32 °F)

Maximum pressure

100 bar
(1,450.4 psi)

Power

5 kW
(6.8 hp)

Description

The processing unit of our Twin-Screw Extruders is a clamshell “easy clean” barrel with interchangeable, segmented screws that can be reconfigured to a specific application by selecting various kneading, mixing, and shear screw elements. Additionally, we offer a wide range of Pre/ Post extrusion options : Feeders for granules and powder (Gravimetric/Volumetric) Feed Dosing Liquid and C02 Injection Various dies & custom applications Metal and Plastic conveyors Water-bath Fixed and Variable speed pelletizers Air Knife Custom Ancillaries The screws are co-rotating, intermeshing, and self-cleaning. All material contact surfaces are GMP & FDA compliant upon request. Minimum quantities of high value samples can be processed with the unique Microlab 10mm which enables time and cost savings in method development, procedure optimization and preparation for scale-up production from our 10mm to our 21mm twin screw extruders.
