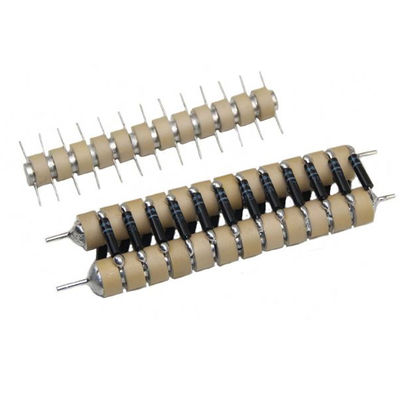

Ceramic capacitor RDC series

module

Spraying gun diodes stack ceramic capacitor details PRODUCT DESCRIPTION Spraying gun diodes stack ceramic capacitor is an integrated voltage doubler integrated rectifier module, which is part of the entire circuit integrated in a device, because of its integrated structure, so it is not subject to vibration, humidity, gas corrosion, not afraid of dust, oil Baptist, can work in harsh environments. Ideal for use in photomultipliers, ionization chambers and similar stable high voltage DC rectifiers that require high voltage, low leakage detection devices. Low dissipation, small tolerance Good charge and discharge performance Small size, high withstand voltage A variety of series, a variety of assembly way Stable electrostatic capacity ELECTRICAL PARAMETER Name: multiplier ceramic capacitor Frequency:lKHz The rated voltage:10 ~ 50 KV Insulation resistancei(IR)> 10000MQ The loss tangent:Tg <0.3% Capacitance:10 ~103 PF Tolerance:K (± 10%)Withstand voltage test:DC1.5 times no breakdown or flashover Series A: enhanced, by silver fittings connection between capacitance per level, str ucture optimization, heat evenly, increase insulation, good reliability
