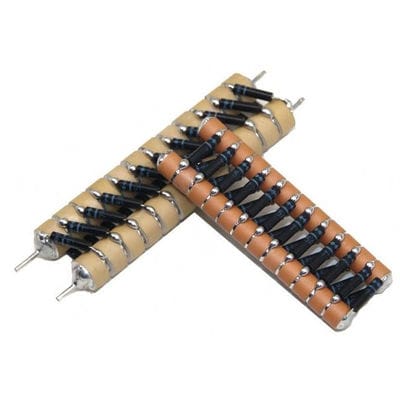

Ceramic capacitor RCD series

modulehigh-voltagefor power electronics

Voltage module sprayer gun ceramic capacitor details PRODUCT DESCRIPTION Voltage module sprayer gun ceramic capacitor is an integrated voltage doubler integrated rectifier module, which is part of the entire circuit integrated in a device, because of its integrated structure, so it is not subject to vibration, humidity, gas corrosion, not afraid of dust, oil Baptist, can work in harsh environments. Ideal for use in photomultipliers, ionization chambers and similar stable high voltage DC rectifiers that require high voltage, low leakage detection devices. Low dissipation, small tolerance Good charge and discharge performance Small size, high withstand voltage A variety of series, a variety of assembly way Stable electrostatic capacity ELECTRICAL PARAMETER Name: multiplier ceramic capacitor Frequency:lKHz The rated voltage:10 ~ 50 KV Insulation resistance:(IR)>10000MQ The loss tangent:Tg <0.3% Capacitance:10 -103 PF Tolerance:« (± 10%) Withstand voltage test:DC1.5 times no breakdown or flashover APPLICATION Suitable for electrostatic spraying doubler module circuit application and typical handheld high-voltage electrostatic spray gun, the built-in high voltage module, low and high pressure anion generator in high voltage power supply components. Static electricity generating circuit, spraying machines, electrostatic flocking equipment, doubler circuit, high frequency doubler rectifier circuit, a major part of the multistage doubler rectifier circuit, low power dc high voltage power supply, etc.
