Scraped surface heat exchanger RONOTHOR

liquid/liquidammoniasurface

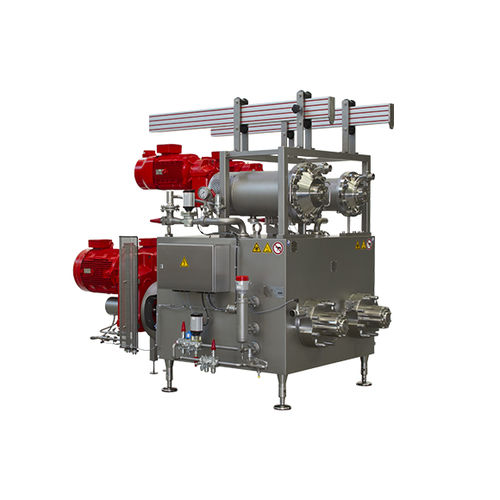

Scraped surface heat exchanger | Type RT The high pressure heat exchanger RONOTHOR RT can be used for heating or cooling of high-viscous products. The RONOTHOR RT is mainly used for the pasteurization and crystallization of spreads such as margarine, shortening or other edible fats where the RONOTHOR shows excellent results. The RONOTHOR is based on proven technique combined with continuous development based on the operational experience of well-known producers. Therefore, the RONOTHOR design is always state of the art. Your demand on the final product, temperature profile and the desired capacity determines the necessary heat exchange surface and thus the size and number of tubes. The conception of the RONOTHOR is modular and very flexible. Up to six heating or cooling units can be mounted in one common frame. Each unit is equipped with an independent refrigeration system and variable gear. Types & Variations Cylinder sizes Ø 180 mm, 250 mm | Length 800 mm, 1400 mm, 2000 mm Modular design The cylinder units are build as single unit, twins or quads, always with hermetical cover. An extension up to six units is possible at any time. This also includes the installation of our various pin worker units. Heating/Cooling Media Freon, ammonia, glycol, cooling water, hot water, steam Scraper system According to diameter and product we provide 2 to 6 scraper rows. Different forms, types and material of scraper are available to ensure the best mechanical treatment.
