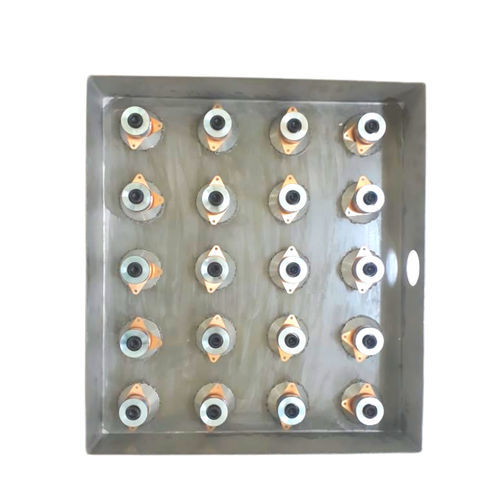

Plate ultrasonic transducer

contactultrasonicelectronic

The success of a large cleaning system depends mainly on Ultrasonic Generators and Transducers. We offer efficient ECO-Generators. Due to their compact design they require less space and are usable in a raw environment. This is allowed by an indirect cooling which ensures that the cooling air does not get in contact with the electronic components. The generators all-purpose housing allows the application as a table top version in 19” switch boards or DIN-rails. The ECO’s power spectrum includes 750 W to 1500 W for tube resonators and immersing transducers. Suitable for large output power requirement Designed for tube resonator, immersing transducers and transducer plate fitted to tank Optional communication via RS-232 interface Three freely programmable relay outputs Five DC-isolated 24V inputs, for external power setting, for instance Over -temperature end over-current turn off Protected against short-circuit and no-load operation Coefficient of efficiency ›90% Fully automatic control and monitoring Table Top housing, 19" Rack mounted version, DIN-rail-mounting or wall fastening Table top version, 19“-Rack mounted version, DIN-rail-mounting or wall fastening. Three free programmable relay outputs. Five DC-isolated 24 V inputs, for external power setting. Fully automatic control and monitoring. Over temperature and overcurrent turn off. Protected spelling short-circuit and no-load operation. Coefficient of efficiency >90 %. Optional communication via RS-232 interface. Designed for tube resonators, immersing transducers and transducer plate fitted to tanks. Frequency-20, 25, 30, 40 kHz ± 1 kHz (automatic control).
