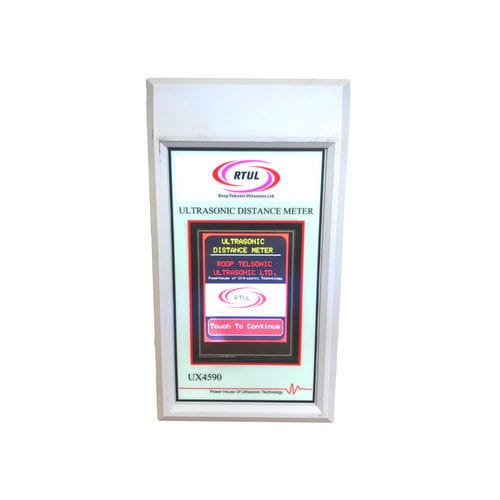

Ultrasonic distance meter UX 4590

Ultrasonic distance measurement is a “Non Contact” method of measurement of distance in air of an object. Ultrasonic Distance measurement provides a reliable, accurate and fast way to measure distance and calculates the area & Volume of any space. An ideal tool for Architects and Civil, Survey Engineers. Principle used is known as “Pulse – Echo” technique. An electrical pulse of high voltage is applied to the ultrasonic transducer to generate a burst of sound waves. Whenever, any obstacle is encountered in the ultrasonic path, the pulse is reflected back in the form of an echo. It calculates the time taken between Transmitting signal and receiving echo and with input of Velocity of Sound in air, distance is displayed on the Instrument. Surveying Level Detection Parking Detection Robotic Barrier Civil Engineers Architects Determining Ceiling Height Flat Area / Volume Calculation Water Level Detection. Distance Measurement mode: Continuous / Test Mode Data Save : Maximum 100 memory/ Data Read / Data Erase Area, Volume calculation mode Temperature Compensation TFT Touchscreen Operations Rechargeable battery Battery indication on display Test Mode: Pulse - Echo Measurement range: 0.8m to 12m Measurement accuracy: +/- 0.5% Probes: Single Crystal (T-R) Calibration: Through TFT Touchscreen Operating Temperature: 0 to 50 C Power: 7.4 V DC Li-Ion Chargeable Data Memory: 100 Display: 2.4 “ TFT Touch Screen Measurement Units: cm/m/inch/ft Weight: 263 gm Dimensions: 150(L) x 82(W) x 45(H)
