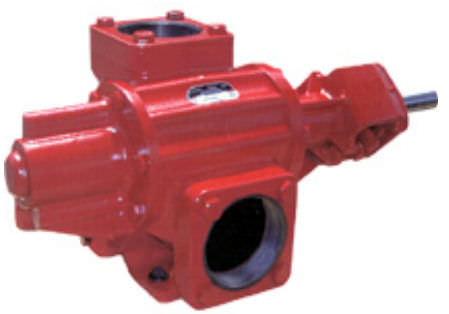

Helical gear pump max. 125 psi, max. 468 gpm | 3600 series

for gasolineself-primingindustrial

Mixing, blending, recirculating, and transferring heavy, viscous materials in either a fixed or mobile transfer application Ideal for gasoline, asphalt, molasses, ink, roofing compound, and oils Heavy duty cast iron helical gear pumps Bi-directional, self-priming Differential pressures to 125 PSI Up to 468 GPM Standard operation up to 212°F Can be built to operate up to 450°F Maintenance-free durability Through ports or angled ports; 2-sided or top and side configuration Threaded ports or flanged, tapped port connections Internal relief valve and integral gear reducer Outboard bearing, depending on drive and seal arrangements Materials - Iron and carbon Bearings; Stainless Steel Gears and Shafts; Delrin® Idler Gears for the 48 model
