Place the vaporiser, which weighs only approx. 5.0 kg, in the room to be treated.
Simply screw Bacoban®DL 3 % in the 1000 ml bottle into the vaporizer according to the operating instructions

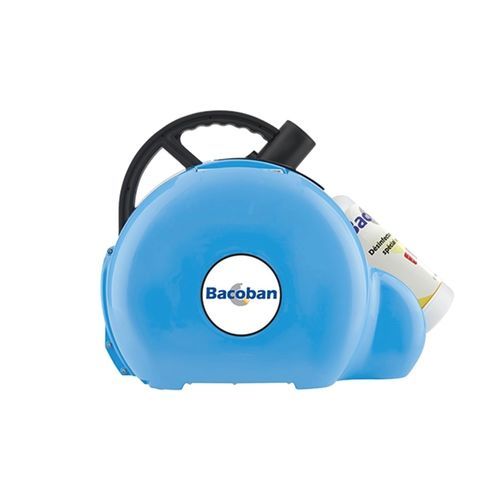

Vaporiser to use with Bacoban® DL 3%
creates dry fog
that spreads evenly over every square centimeter of the room
Press the on/off switch.
Determine the room volume (L x W x H) and enter it via the control panel
Press 'Start' on the control panel - a buzzer will sound for 5 seconds to allow you to leave the room
Device switches off automatically
Technical data
Weight: 5 kg
Maximum treatment volume: 333 m³
Container: 1000 ml
Average amount of liquid: 1000 ml/h
Power supply: 230 V
Mains frequency: 50 to 60 Hz
Power: 1050 W
Terms of Use
Temperature: 0°C to 40°C
Hygrometry: 10% to 90% RH without condensation
Air Pressure: 800 to 1060 hPa
Storage
The device should be stored in a dry, clean and protected place
