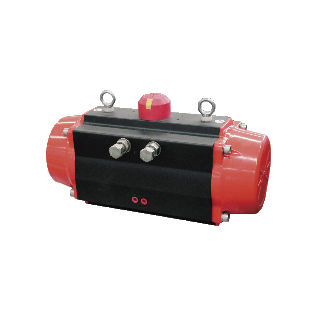

Rotary actuator RP pneumaticcylinderdouble-acting
Add to favorites
Compare this product
Characteristics
- Movement
- rotary
- Type
- pneumatic
- Technology
- cylinder
- Configuration
- double-acting
- Material
- aluminum, alloy
- Norms
- ISO
- Applications
- for ball valves, for butterfly valves
- Other characteristics
- NAMUR
- Bore
Min.: 50 mm
(1.97 in)Max.: 1,000 mm
(39.37 in)- Pressure
10 bar
(145 psi)- Rotation angle
90 °, 180 °
- Fluid temperature
Min.: -40 °C
(-40 °F)Max.: 150 °C
(302 °F)
Description
Bottom hole size is in conform to IS05211, DIN3337.
Constructional style: 2 sections
Start and ending position:±5°
Lockable at anywhere
Output axle: 45# electroplate
