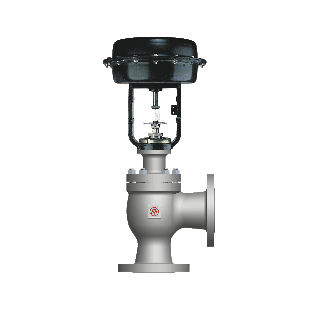

Globe valve RPV4 manualpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- manual, pneumatic, electric
- Function
- regulating
- Media
- for oil, for gas
- Body
- flange, seat, right-angle, line
- Applications
- for food applications, for the petroleum industry, for the paper industry, for metallurgy
- Number of channels
- 2-way
- Other characteristics
- ANSI
- DN
Max.: 200 mm
(7.874 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 250 bar
(3,625.9 psi)Min.: 16 bar
(232.1 psi)
Description
• Body style: angular denoise form, angular single seat, angular cage form
• Flanged standard: GB/T 9112-9124 (HG/T20S92-20635).ASME B16.5.JIS B2220
• Face 10 Face: IEC60534-3-1
• Flow feature: straight line, equal percentage, Quick opening
• Cap style: standard style, extends on style, bellows style
• Adjustable rate: 50:1
• Designed standard: DIN En1349 (Conform: ANSI,GB,JIS Standard)
• leak standard: ASMEB16.104
