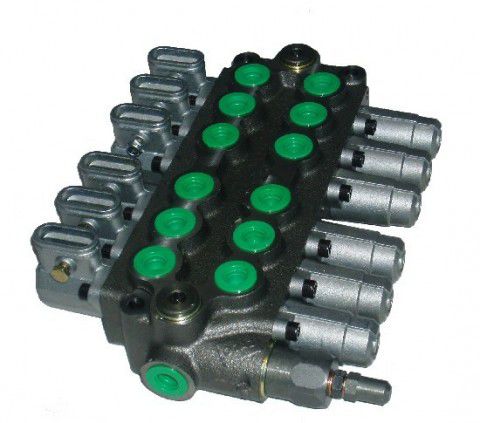

Spool hydraulic directional control valve 102 lever-operated3-waymonobloc
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- lever-operated
- Ports/positions
- 3-way
- Other characteristics
- monobloc
- Operating pressure
350 bar
(5,076 psi)- Flow rate
Max.: 60 l/min
(16 us gal/min)Min.: 40 l/min
(11 us gal/min)
Description
Description
Type of distribution in series. A-B and P-R ports of 3/8 G. for the 102 model and A-B and P-R ports of 1/2 G. for the 1102 model. Diameter of spool 15 mm and stroke 5,5 mm, actuating system by hydraulic, pneumatic, electrical pilot, or by manual lever. A great variety of auxiliary valves exists, fact that allows to adapt itself to the required needs by any type of installation. More information in the attached catalogue.
Catalogs
PLA Gear pumps & Motors
26 Pages
Gear pumps & Motors (Group 2/ G)
37 Pages
