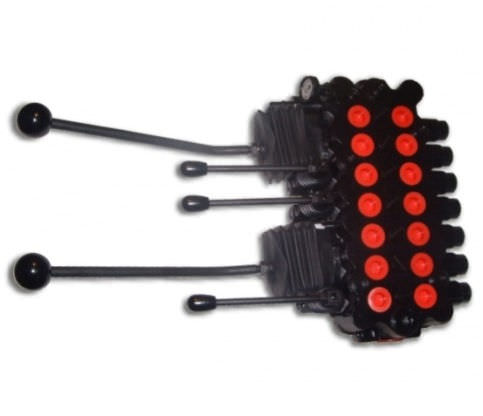

Spool hydraulic directional control valve 504 lever-operated4-waymonobloc
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- lever-operated
- Ports/positions
- 4-way
- Other characteristics
- monobloc
- Operating pressure
350 bar
(5,076.32 psi)- Flow rate
80 l/min
(21.1 us gal/min)
Description
Parallel type of distribution. A-B ports of 3/8” G., P of 1/2” G. and R of 3/4” G. for the 504 model, and A-B and P ports of 1/2” G. and R of 3/4” G. for the 1504 model. Diameter of spool 16 mm and stroke 6 mm, actuating system by hydraulic, pneumatic, electrical pilot, or by means of manual lever. A great variety of auxiliary valves exists, fact that allows to adapt itself to the required needs by any type of installation. More information in the attached catalogue.
Catalogs
No catalogs are available for this product.
See all of Roquet Hydraulics S.L.‘s catalogsOther Roquet Hydraulics S.L. products
