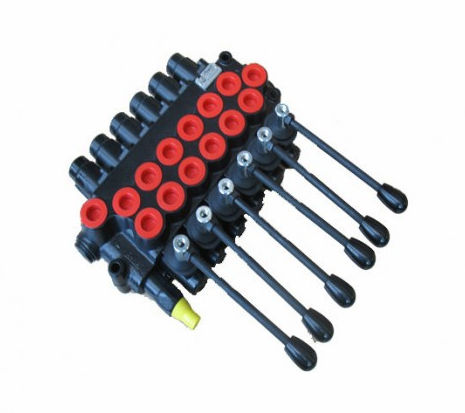

Spool hydraulic directional control valve 202lever-operated4/3-waymonobloc
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- lever-operated
- Ports/positions
- 4/3-way
- Other characteristics
- monobloc
- Operating pressure
350 bar
(5,076.32 psi)- Flow rate
60 l/min
(15.9 us gal/min)
Description
Parallel type of distribution. A-B ports of 3/8” G. and P-R ports of 1/2” G. for the 202 model and A-B and P-R ports of 1/2” G. for the 1202 model. Diameter of spool 15 mm and stroke 5 mm, actuating system by hydraulic, pneumatic, electrical pilot, or by means of manual lever. A great variety of auxiliary valves exists, fact that allows to adapt itself to the required needs by any type of installation. More information in the attached catalogue.
