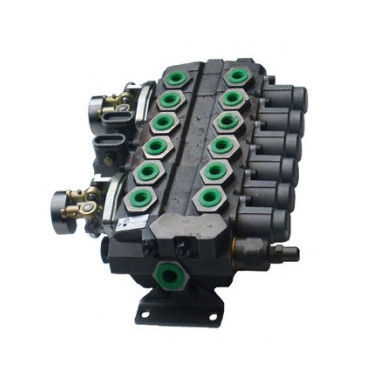

Spool hydraulic directional control valve 402 lever-operated4/3-waysectional
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- lever-operated
- Ports/positions
- 4/3-way
- Other characteristics
- sectional
- Operating pressure
350 bar
(5,076.32 psi)- Flow rate
50 l/min
(13.2 us gal/min)
Description
Parallel or serial-parallel type of distribution. A-B ports of 3/8 G. and P-R of 1/2 G. for the 402 model and A-B and P-R ports of 1/2 G. for the 1402 model. Diameter of spool 15 mm and stroke 5,5 mm, actuating system by hydraulic, pneumatic, electrical pilot, or by means of manual lever. A great variety of auxiliary valves exists, fact that allows to adapt itself to the required needs by any type of installation. More information in the attached catalogue.
Catalogs
PNC Gear pumps & Motors
14 Pages
