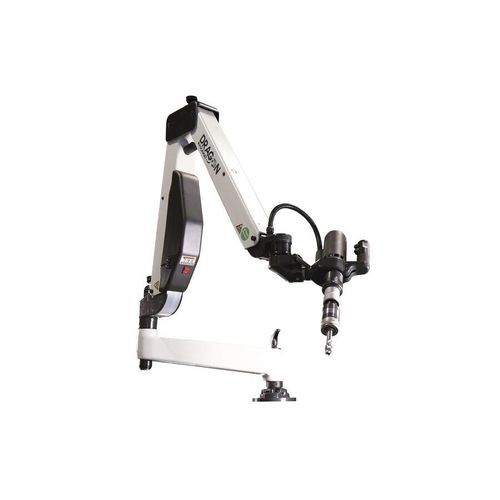

Electric tapping machine DRAGON

swing-armverticalautomatic

We can consider the usage of the machine R-Dragon identical to the R-Tiger, but with the advantage of having much more working area, because of the length of the arms. The machine consist of a radial supporting both articulated arms that can be adjusted by means of hte regulation handwheels to position them at the operator’s convenience The multiposition head is a double swivel joint device allowing to lock and unlock both swivel pins to thus position the head and keep it blocked in order to thus operate in any space position. Through the base by three M8 screws the machine can be fixed to a table or workbench. Such attachment can also be obtained by means of a simple clamp. High Frequency Electric motor. Power 0,55 Kw. Single phase (220V or 110). Motor supply voltage: 200-240 V. 50/60 Hz. Less speed: 90 rpm – Highest speed: 2.100 rpm To work in any space positions therewith always maintaining the perpendicularity to the work plane regardless the arm position. Working Area Radius: 2.255 mm Height: 1.139 mm Quick-change toolholder A wide of tapholders, all of them WITH or WOTHOUT clutch, apart from other quick holding fixture for different tools, such as drills, sinking tools, threading dies, socket wrenches, etc. are available. Tapholder with safety clutch so that it slips when it reaches the hole bottom. Type 1 Ø19 mm: capacity range M2-M16 (for modules 1050, 750, 550, 300 rpm); Type 2 Ø31 mm: capacity range M6-M30 (for modules 170, & 90 rpm) Tapholder without safety clutch for holding different tools with cylindrical shank and driving cube.
