Handheld enclosure Pilot Series
rectangularpolyesterpolyamide

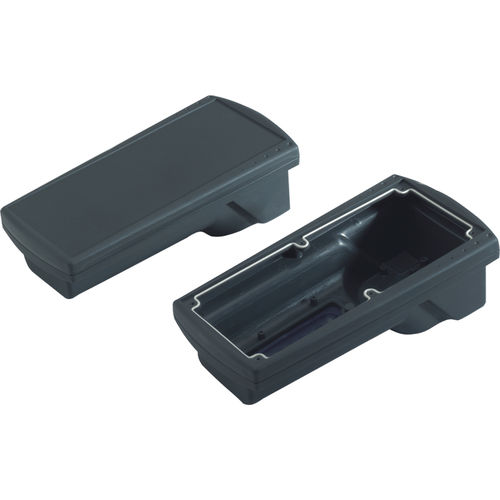

Handheld enclosure - Pilot Series - ROSE Systemtechnik - rectangular / polyester / polyamide
Handheld enclosure - Pilot Series - ROSE Systemtechnik - rectangular / polyester / polyamide
Handheld enclosure - Pilot Series - ROSE Systemtechnik - rectangular / polyester / polyamide - image - 2
Handheld enclosure - Pilot Series - ROSE Systemtechnik - rectangular / polyester / polyamide - image - 3
Handheld enclosure - Pilot Series - ROSE Systemtechnik - rectangular / polyester / polyamide - image - 4
Handheld enclosure - Pilot Series - ROSE Systemtechnik - rectangular / polyester / polyamide - image - 5
Handheld enclosure - Pilot Series - ROSE Systemtechnik - rectangular / polyester / polyamide - image - 6
Add to favorites
Compare this product


Characteristics

Construction
handheld
Configuration
rectangular
Material
polyester, polyamide, PVC
Application
industrial, for displays
Protection level
UL, robust, IP65, IP66, EMC
Other characteristics
custom, with lid, large, control
Width

Max.: 440 mm
(17.3 in)

Min.: 85 mm
(3.3 in)

Height

Max.: 191 mm
(7.5 in)

Min.: 70 mm
(2.8 in)

Depth

Max.: 295 mm
(11.61 in)

Min.: 76 mm
(2.99 in)

Description

> Polyamide hand held enclosure for MCR- and automation engineering > Large fitting space > Version with closed or front frame lid > Rear battery compartment > Optional EMC version with internal coating and EMC seal The rapidly changing requirement profile for automation and control-system components necessitates facilities for the installation of decentralised electronic modules. ROSE has recognised this trend, and consistently translated it into new products for industrial use. The Pilot 250 provides ideal conditions for the installation of electronic and electromechanical components for the manufacturers of control, operating, testing and acquisition systems: > Large installation space > Prepared fixing points for displays, membrane keypads and PCBs > Removable rear cover for (e.g.) battery compartment, interface modules, quick-change facility for electronics Two product variants are available: > Polyamide enclosure with closed front-panel lid > Polyamide enclosure with lid frame for customised front panels
